Terex/Unit Rig Trucks

While attending the MINExpo in Las Vegas, 9-12 October 2000, photographs were taken at the Terex truck exhibit. The photos show details which could be observed by the general public. No attempt was made to include all the important features of the trucks - only those of particular interest were photographed.

Shown below are a number of small "thumbnail" photos. Clicking on each "thumbnail" causes a larger version of the photo to be displayed.

Disclaimer: Although Hutnyak Consulting has tried to accurately report on what was presented at the MINExpo 2000, the reader should conduct further investigations before making business decisions based on the information contained on this web site.

Categories:

Terex MT3300AC 150 ton AC
Terex MT5500AC 360 ton AC

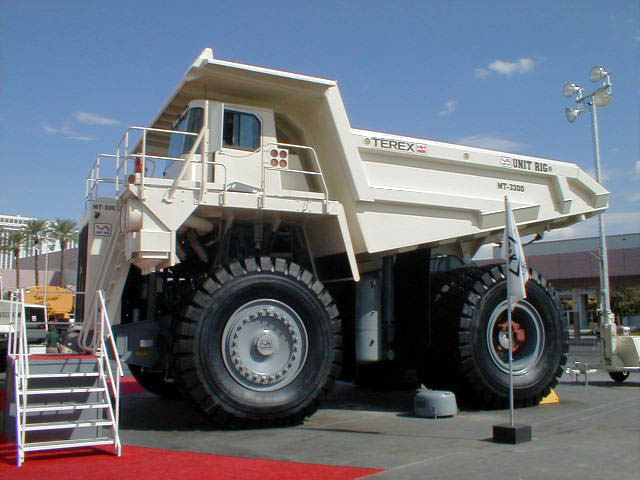

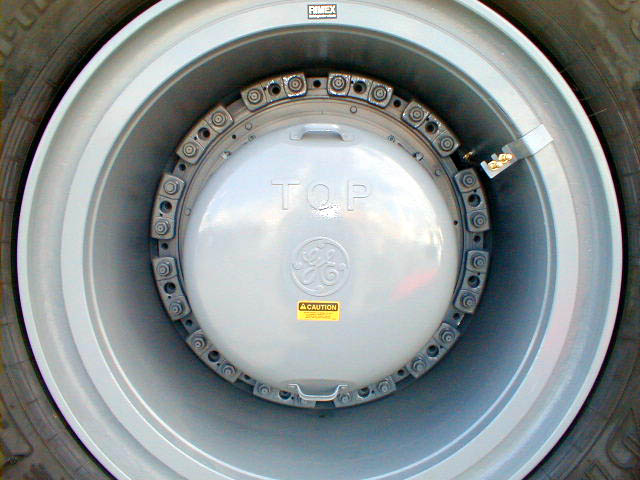

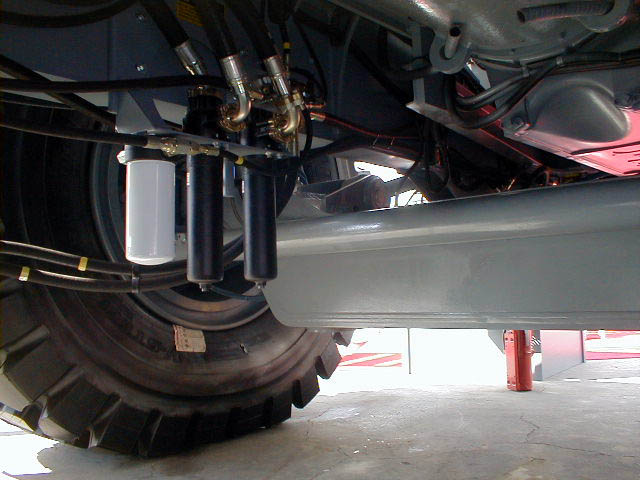

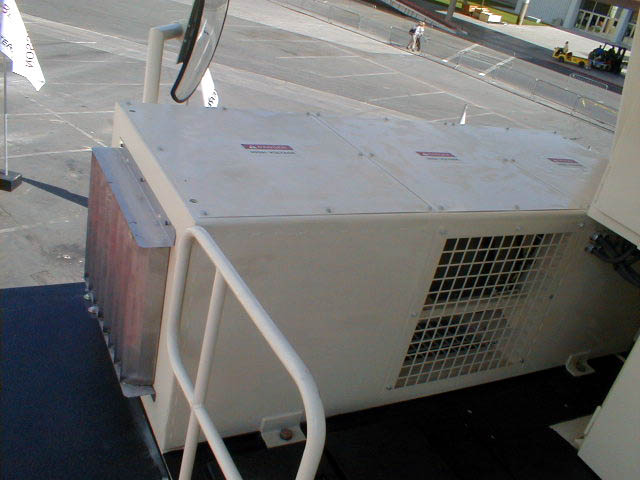

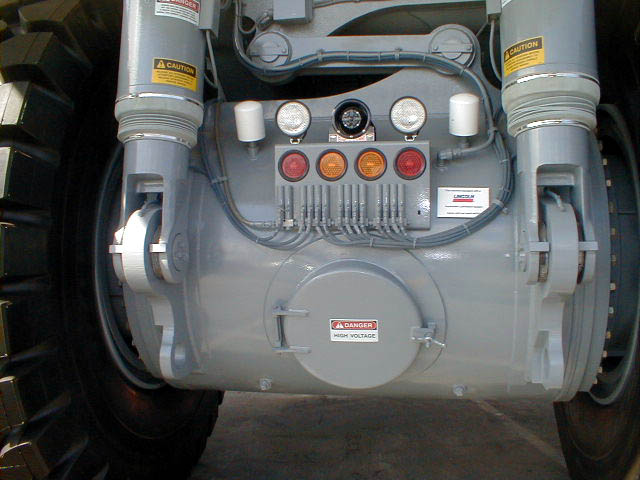

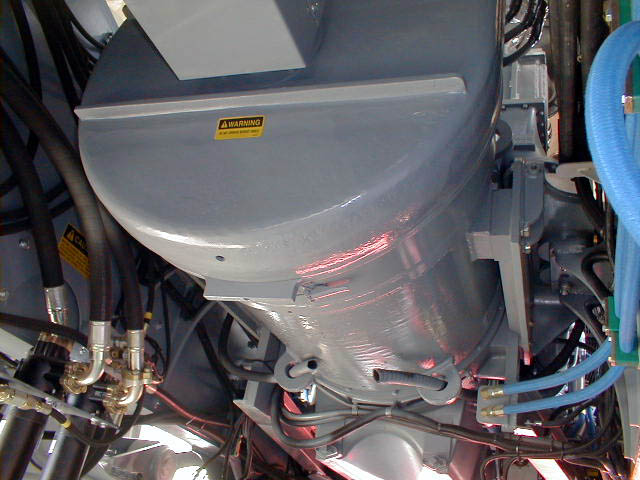

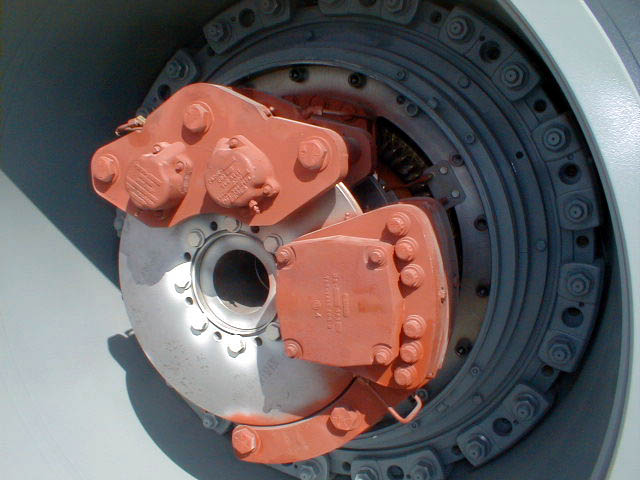

Terex MT3300AC - The sign by the Terex MT3300AC provided the following information: "150 Ton (136 mt) Capacity, DDC 12V400/1800 hp (1343 kW)Engine, DDC 12V400/1800 hp (1343 kW) Engine, General Electric AC Drive, 33R51 Tires, EVW:232,000 lbs (105215 kg), GVW: 532,000 lbs (241270 kg), 3 Pass Loading with RH200, Dimension: 39'11"L x 21'4"W x 20'11"H (12.17 m x 6.5 m x 6.38 m)."

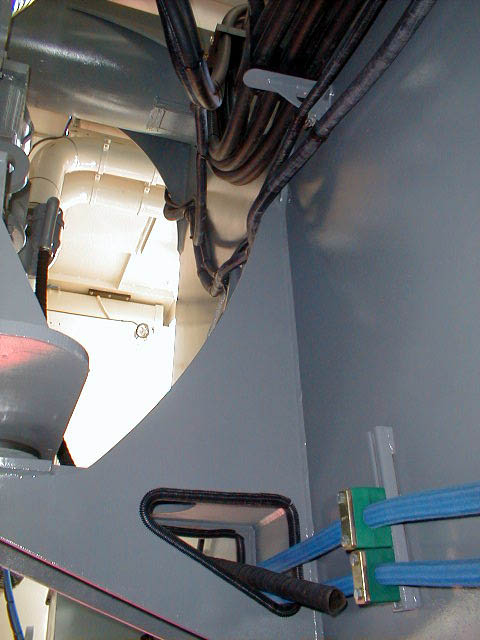

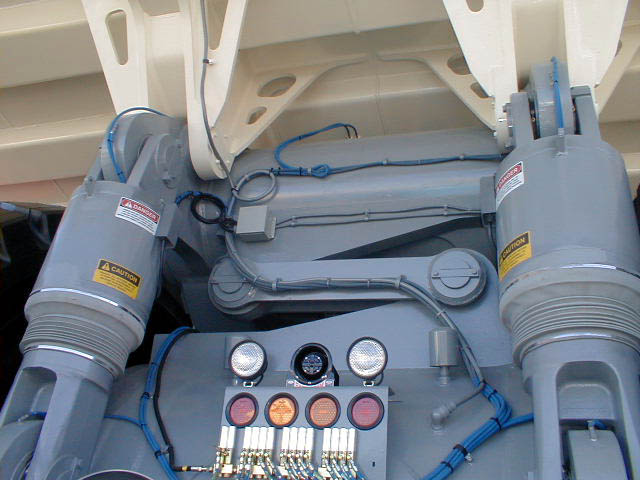

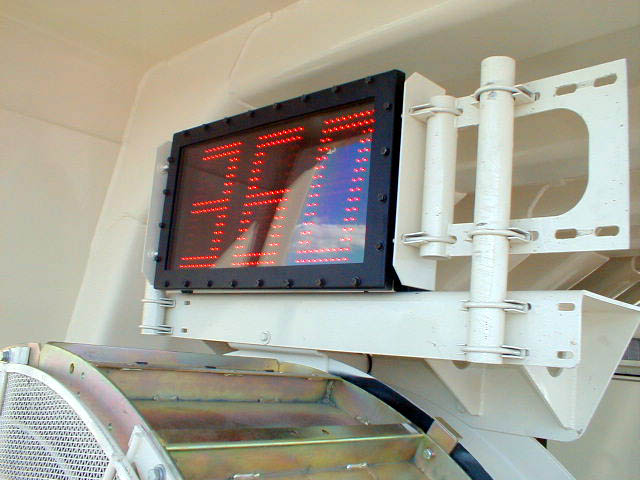

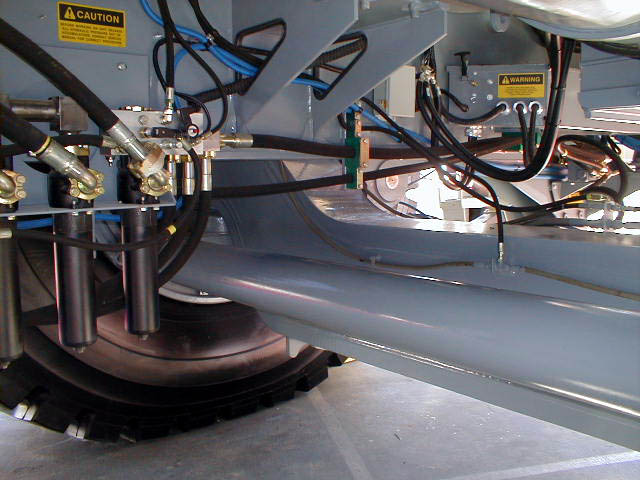

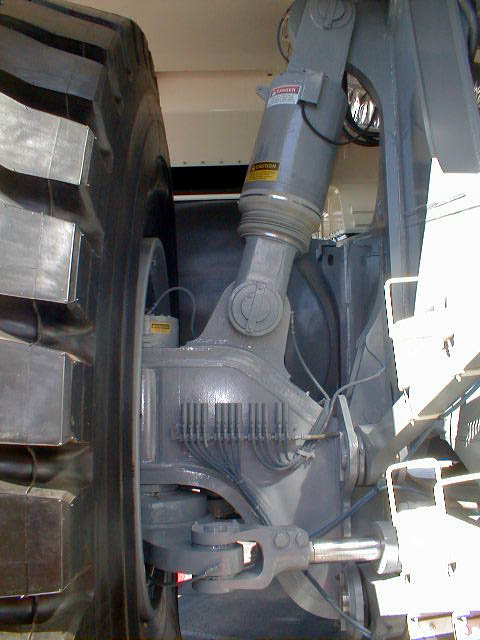

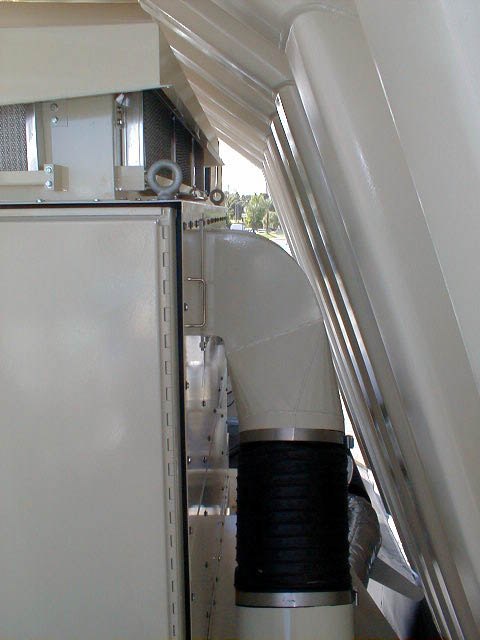

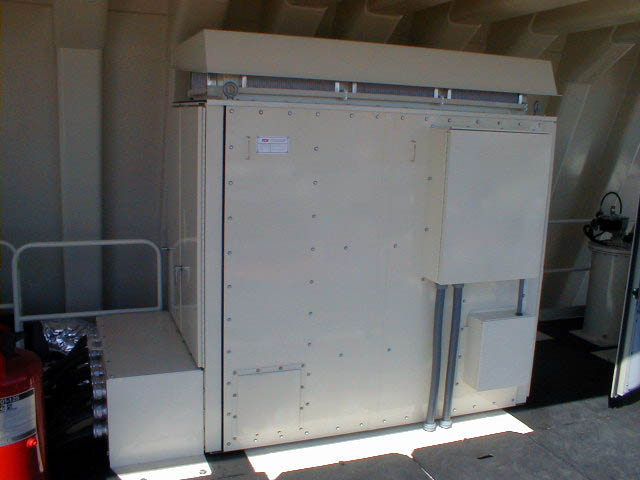

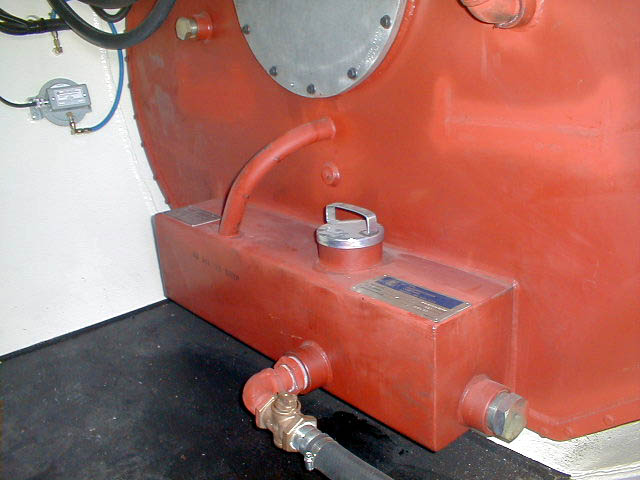

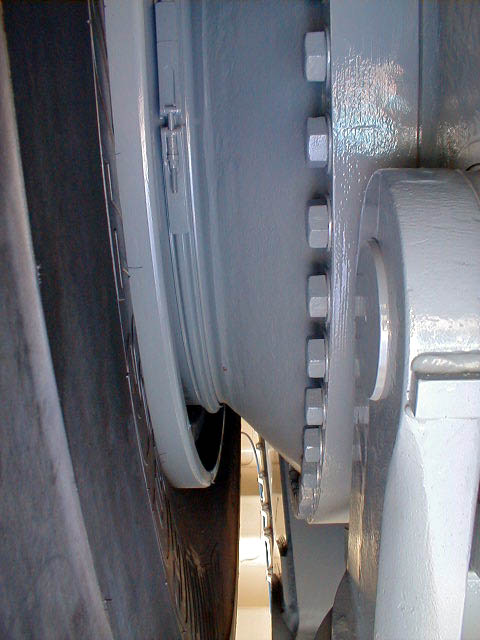

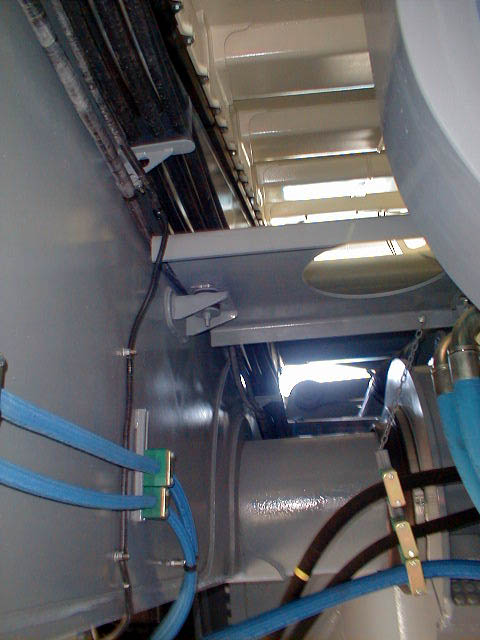

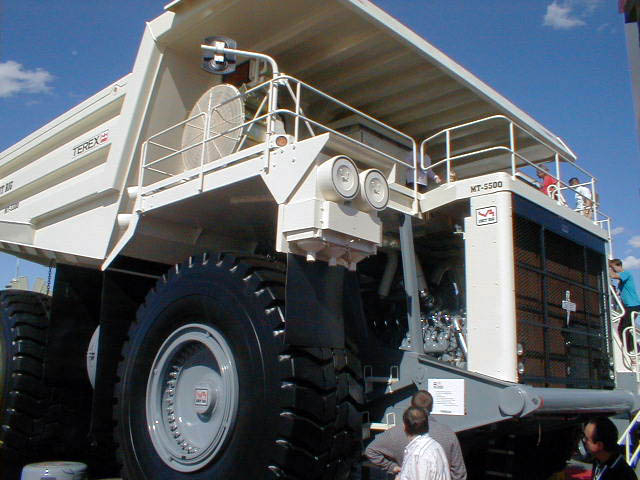

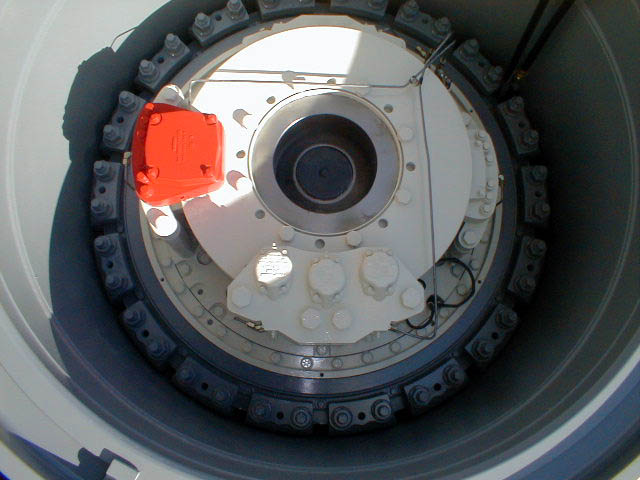

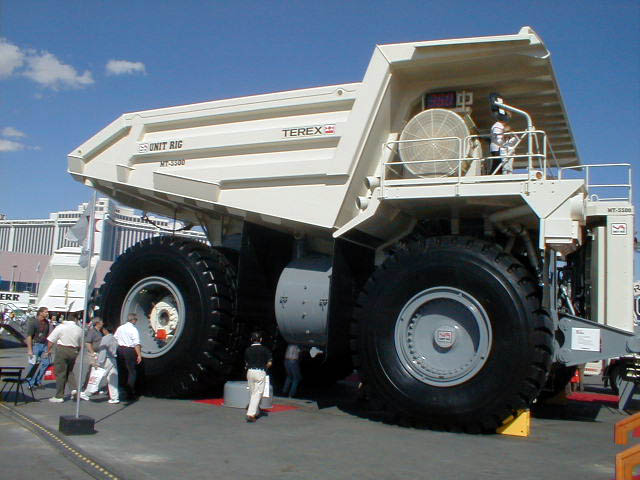

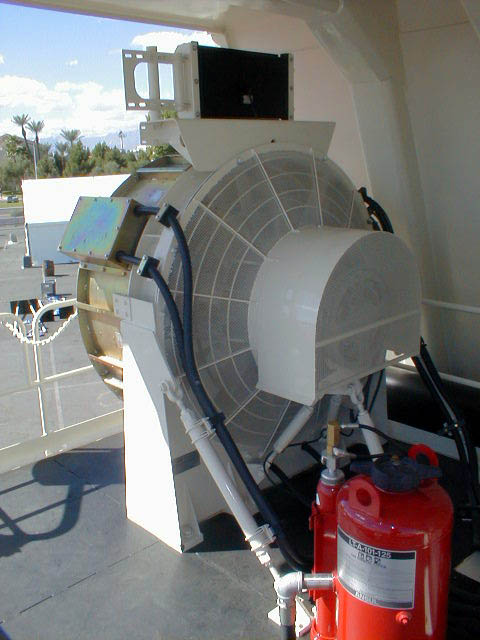

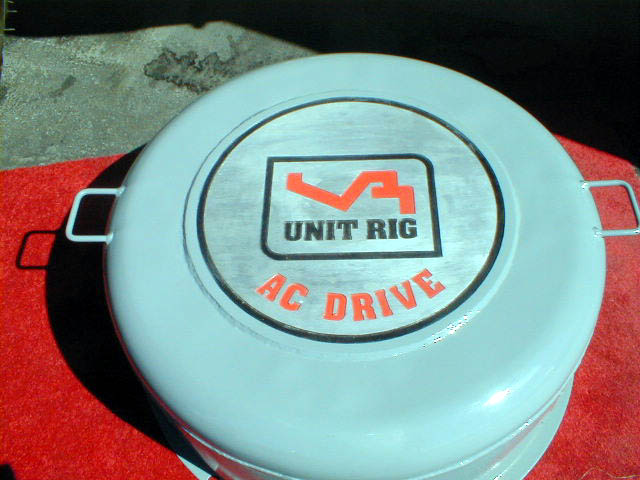

Terex MT5500AC - A Terex brochure for the MT5500 provides the following information: "360 Tons (326 mt) Capacity, MTU/DDC or Cummins 2700 hp (2014 kW)Engine, General Atomics/PCS AC Drive, 55/80R63 Tires, EVW:478,000 lbs (216780 kg), GVW: 1,198,000 lbs (543311 kg)."



See other truck photos: Belaz, Caterpillar, Hitachi/Euclid, Komatsu, Liebherr, Terex/Unit Rig, Trolley Assist
