MINExpo 2000 Liebherr Trucks

- To See an Update for Liebherr at MINExpo 2004 Click Here -

While attending the MINExpo in Las Vegas, 9-12 October 2000, photographs were taken at the Liebherr truck exhibit. The photos show details which could be observed by the general public. No attempt was made to include all the important features of the trucks - only those of particular interest were photographed.

Shown below are a number of small "thumbnail" photos. Clicking on each "thumbnail" causes a larger version of the photo to be displayed.

Disclaimer: Although Hutnyak Consulting has tried to accurately report on what was presented at the MINExpo 2000, the reader should conduct further investigations before making business decisions based on the information contained on this web site.

Categories:

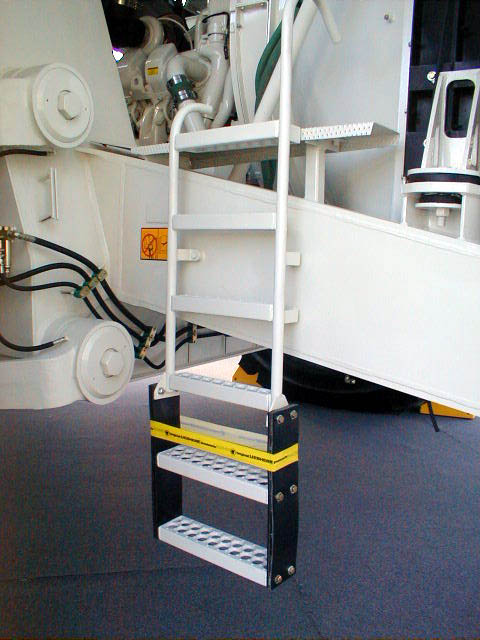

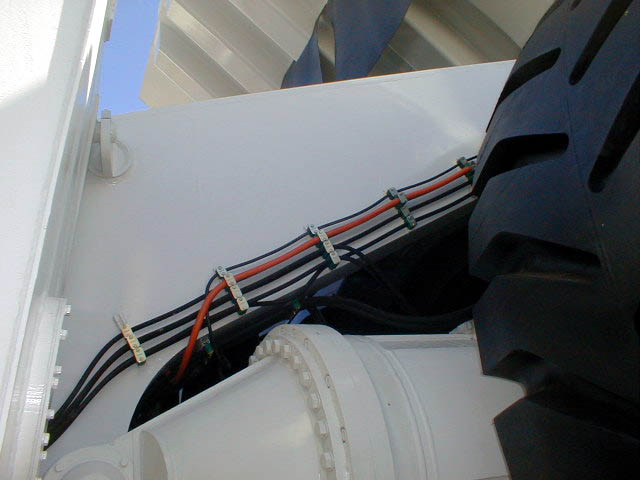

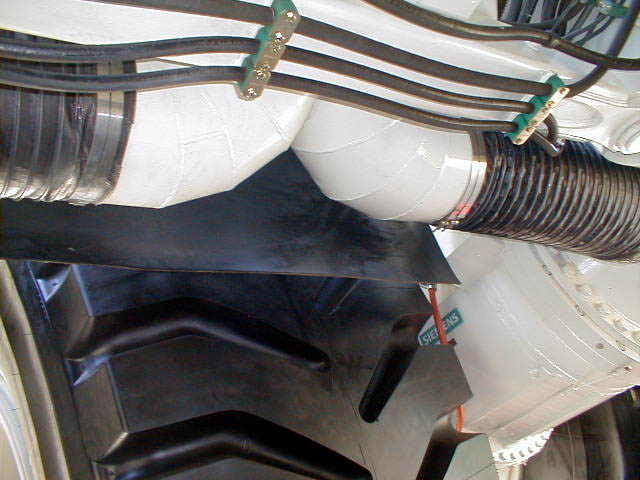

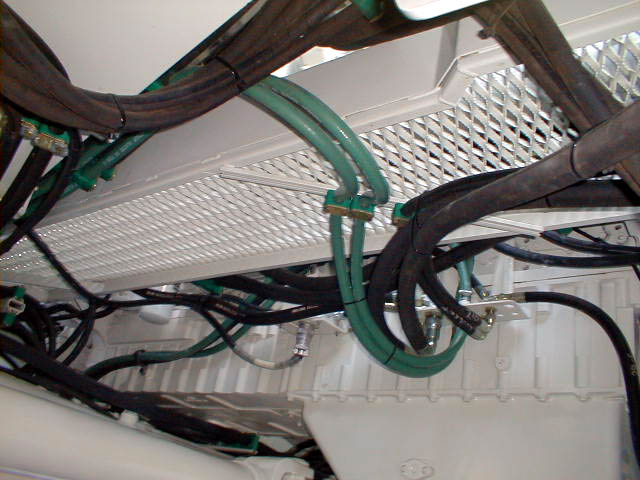

Liebherr TI272

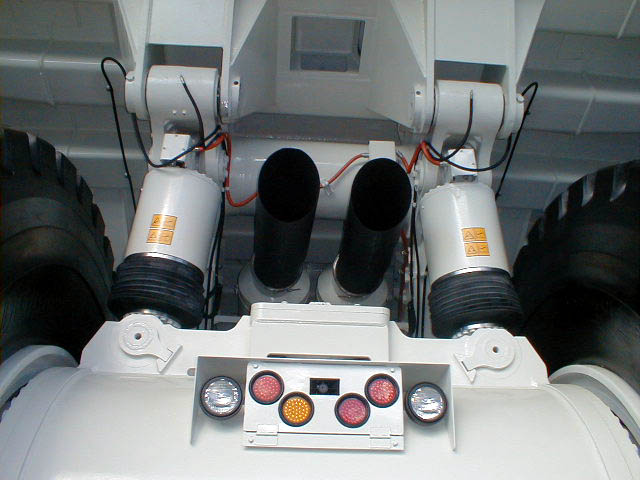

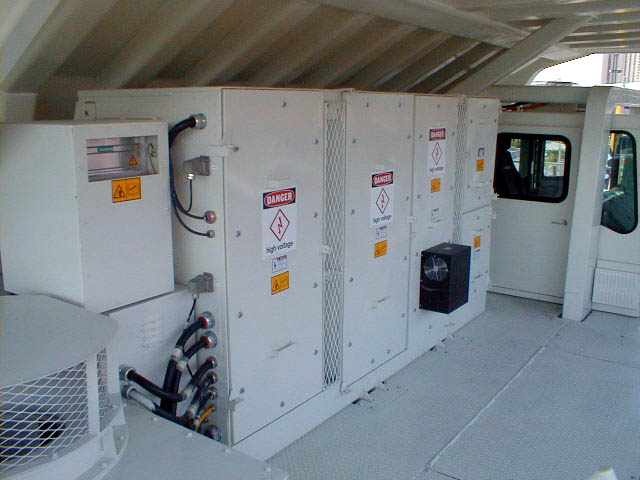

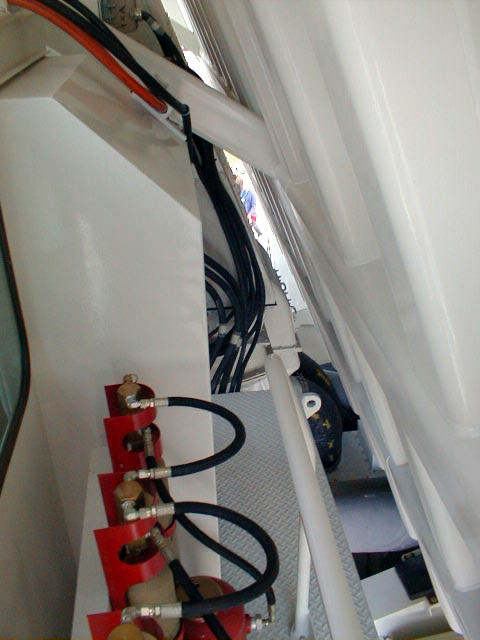

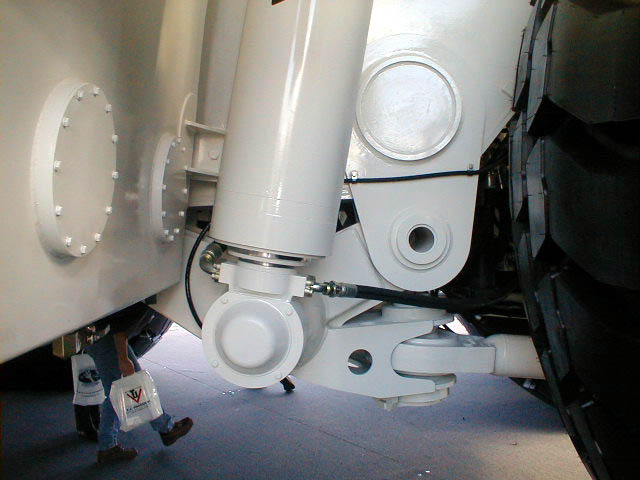

Liebherr T282

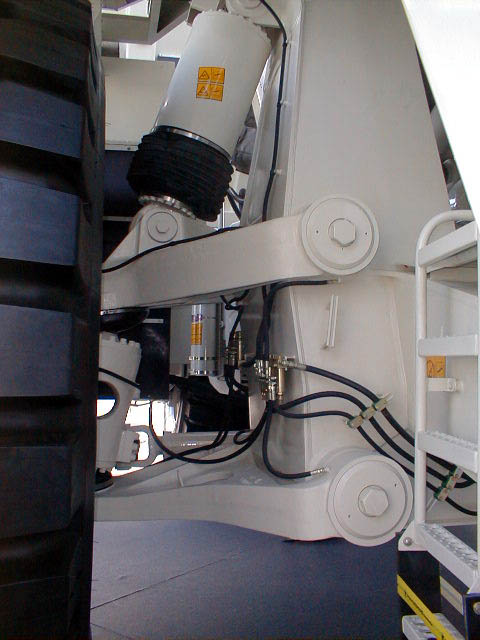

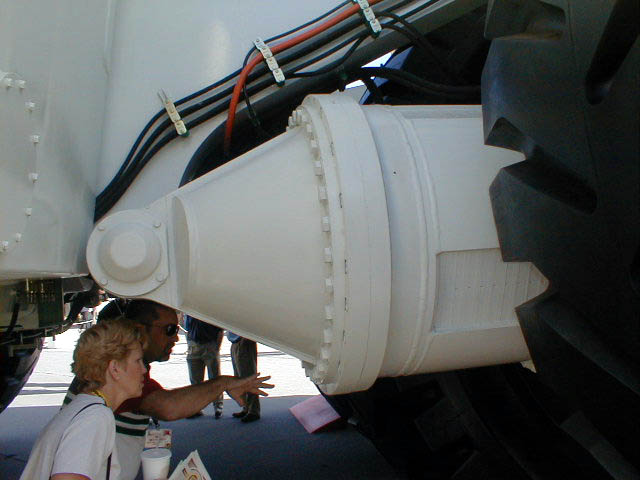

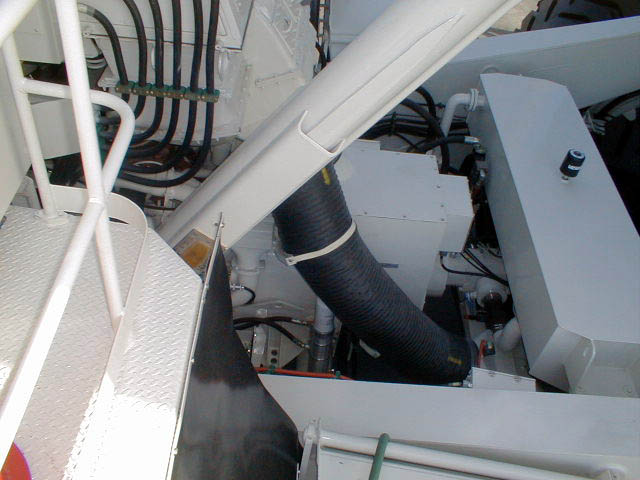

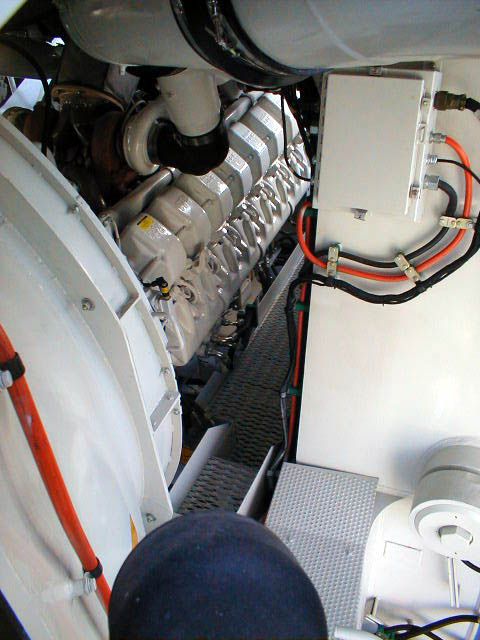

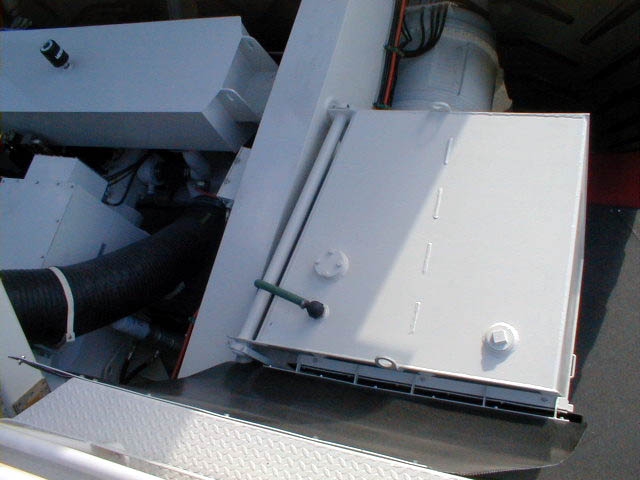

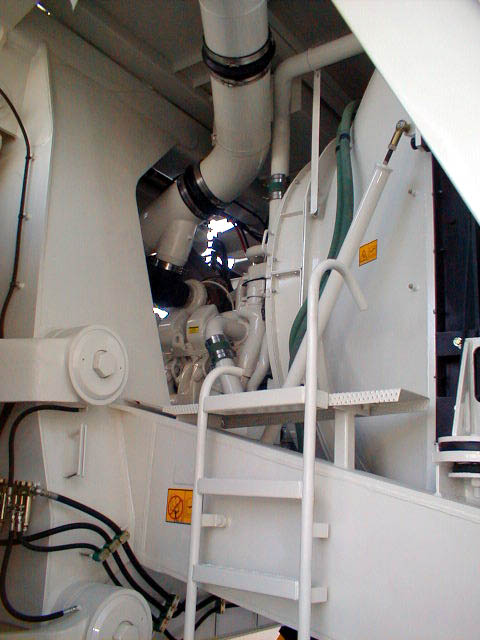

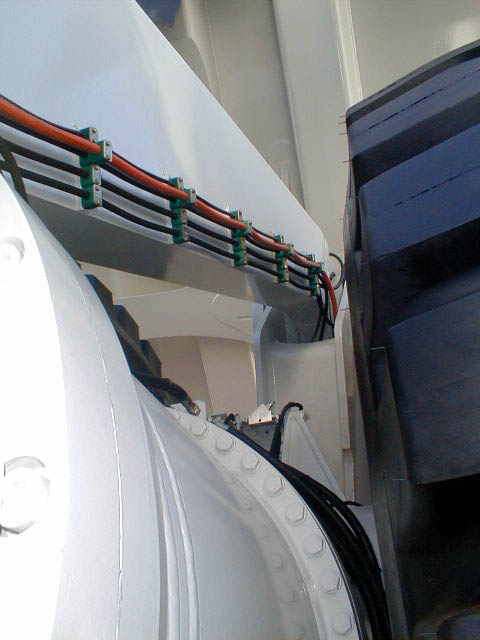

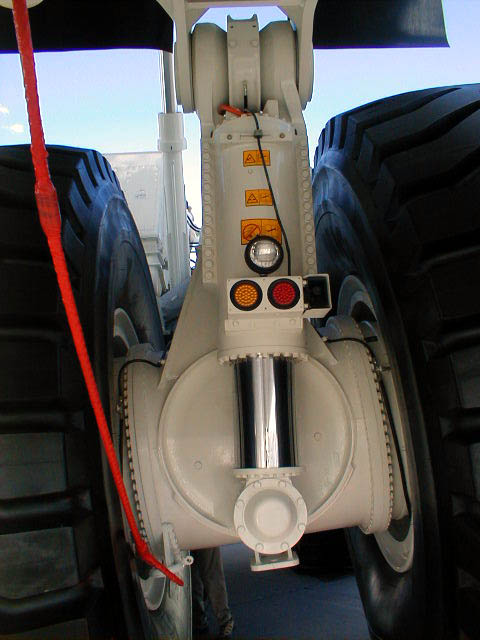

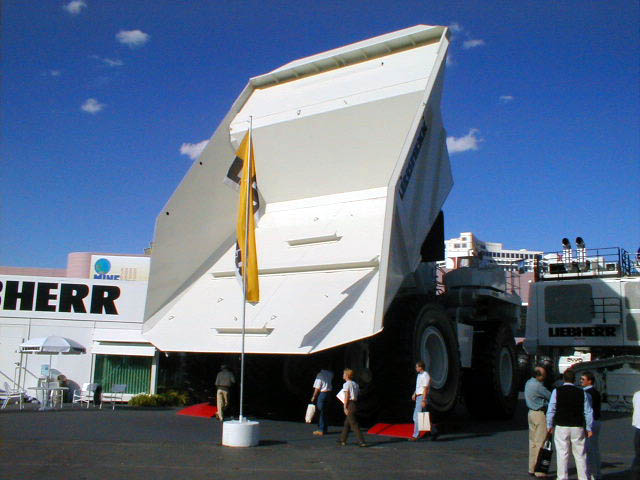

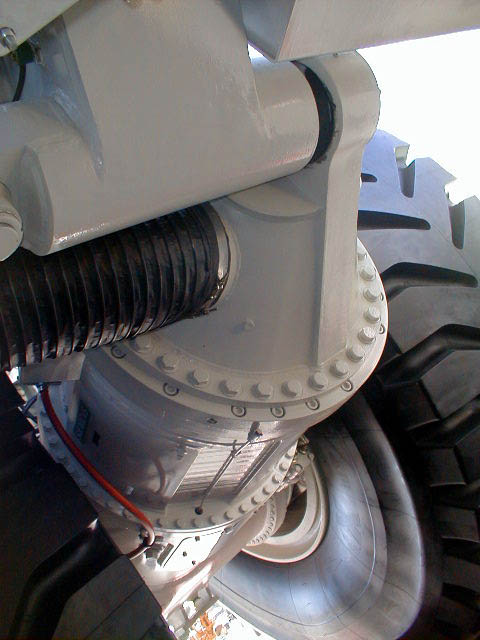

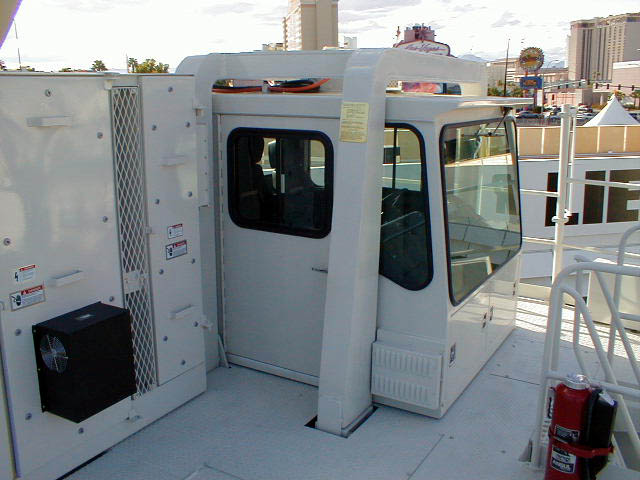

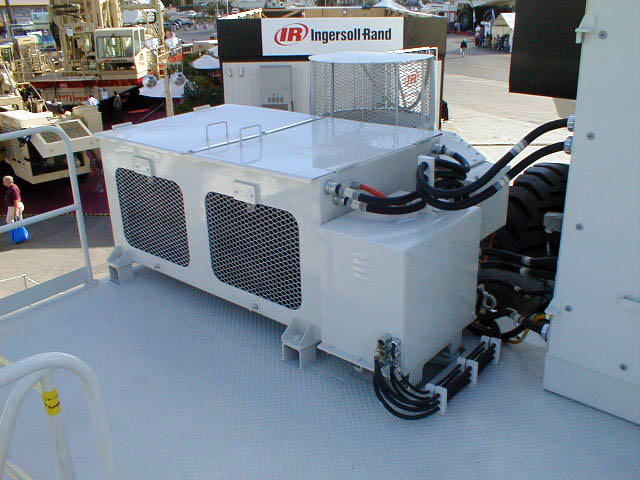

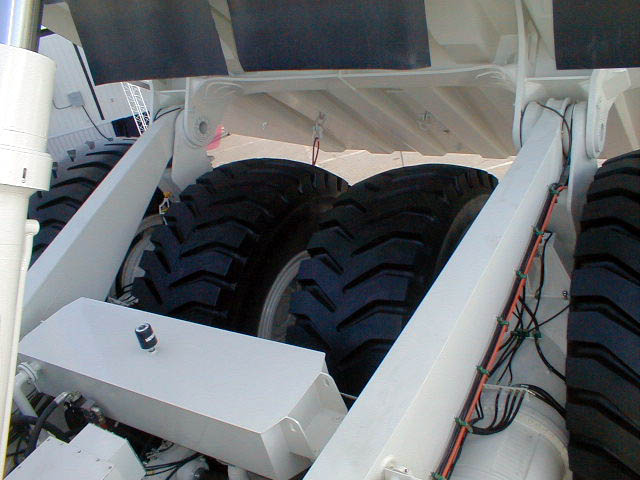

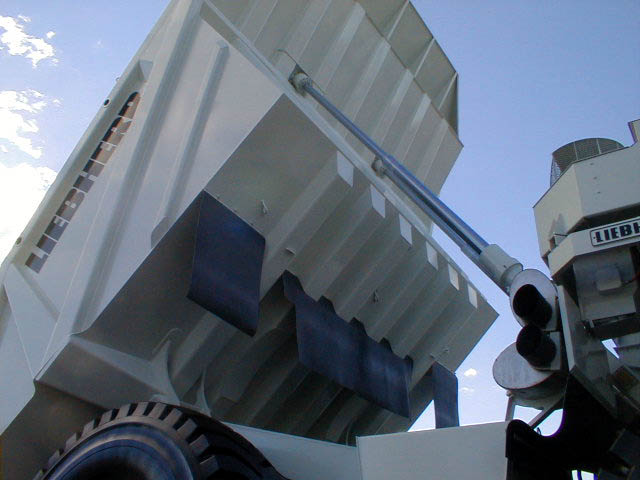

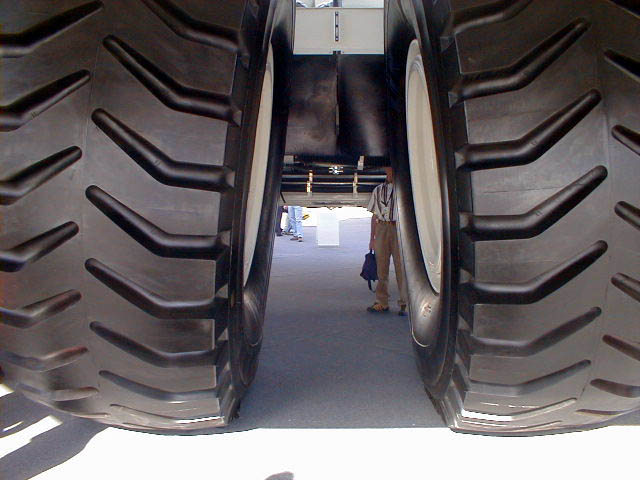

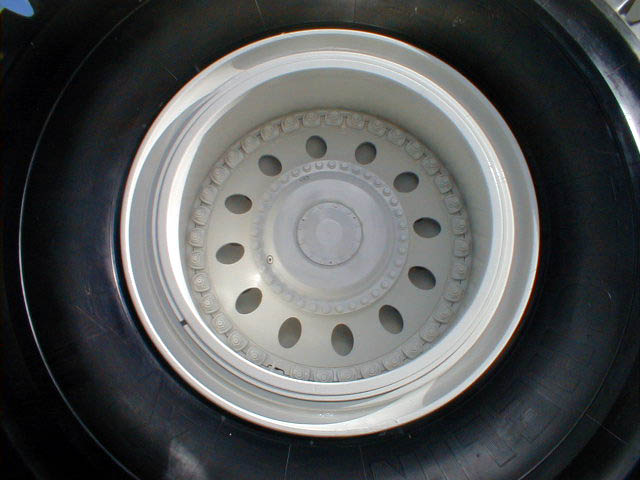

Liebherr TI272 - The sign by the Liebherr TI272 provided the following information: "320 Short Ton, Diesel Electric, EVW : 334,000 lbs, GVW: 974,000 lbs, Engine: MTU/DDC 16V4000 2700 HP, Electric Drive: AC Siemens/Liebherr, Dump Body: 230 cu yds@2:1 Heap, Tires: Michelin 50/80 R57, Dimensions: 42'8" Length, 26'11 Width, 21'9" Height."

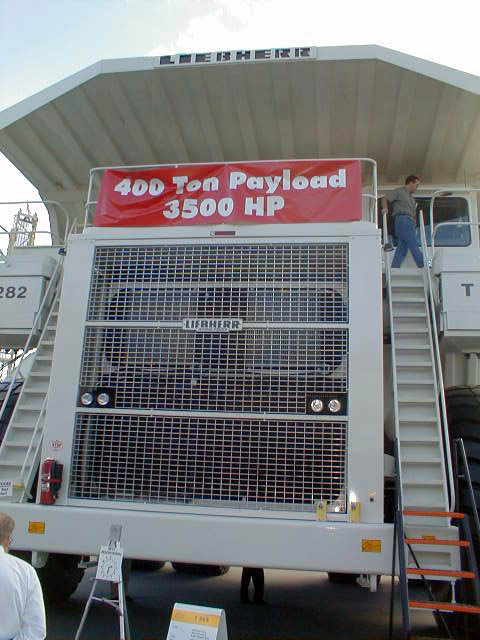

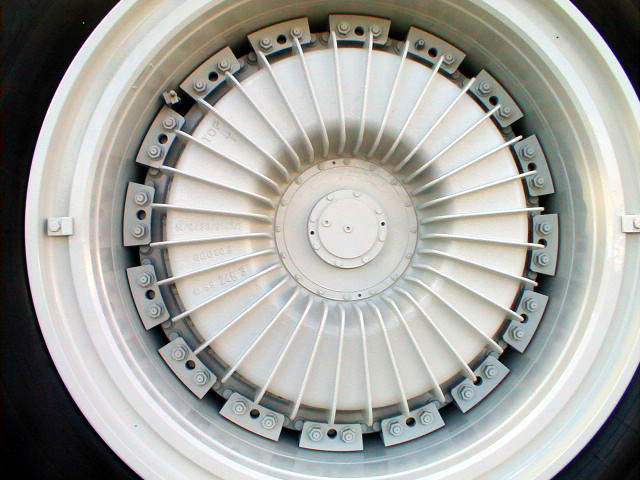

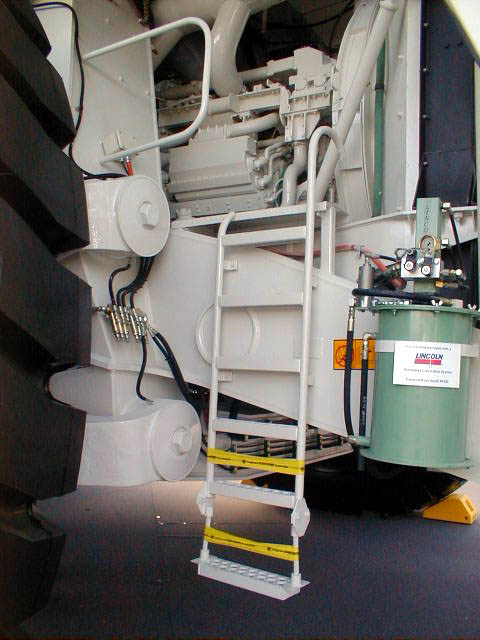

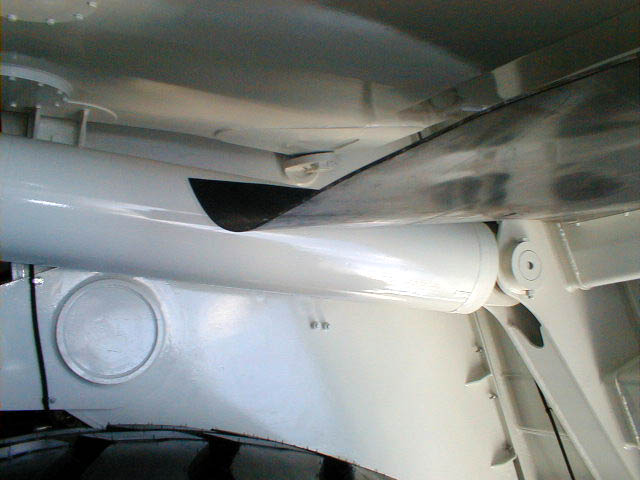

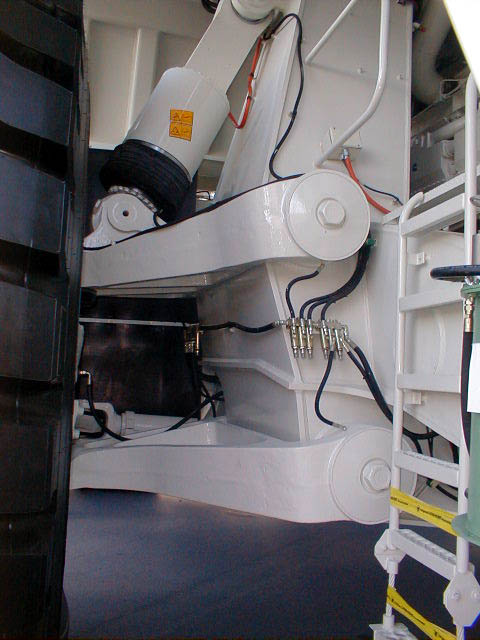

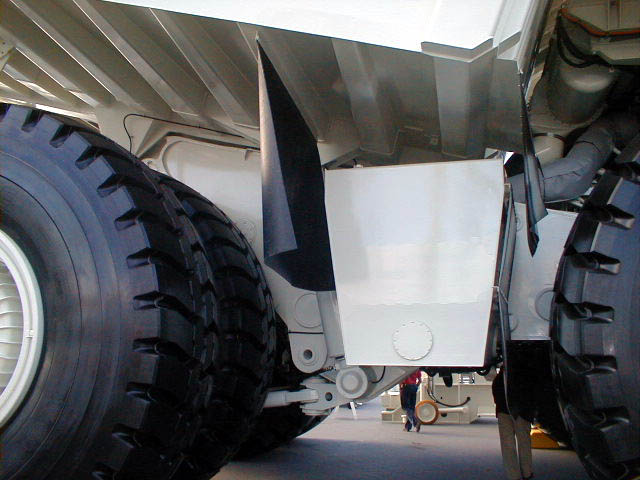

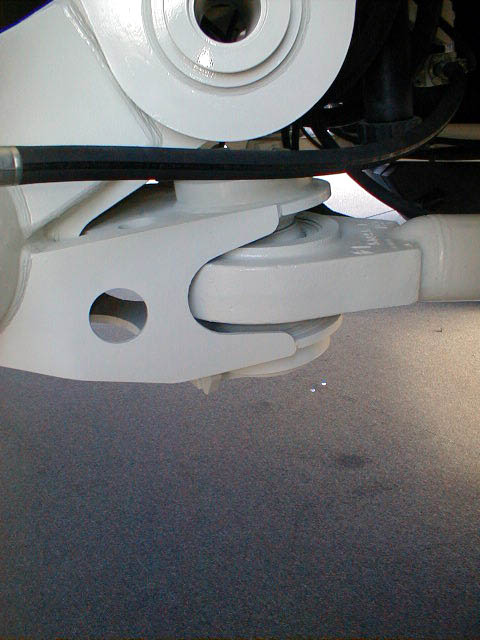

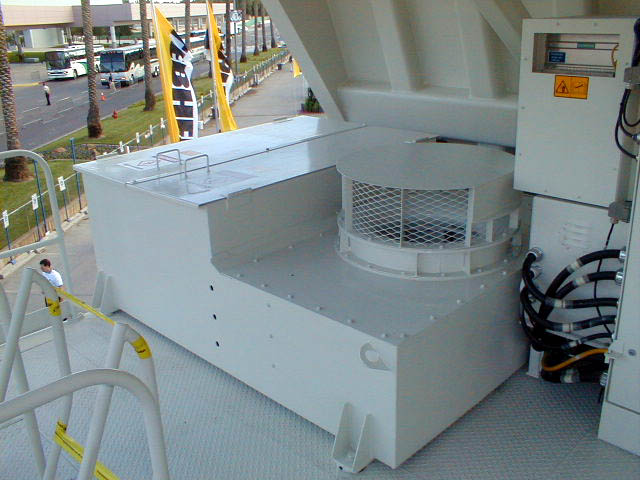

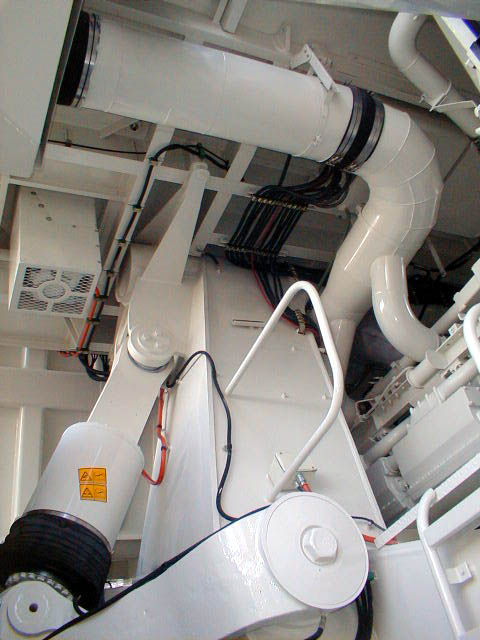

Liebherr T282 The sign by the Liebherr TI282 provided the following information: "400 Short Ton, Diesel Electric, Light Weight Body, EVW: 449,000 lbs, GVW: 1,248,000 lbs, Engine: Cummins QSK 78 3500 HP, Electric Drive: AC Siemens/Liebherr, Dump Body: 290 cu yds@2:1 Heap, Tires: Bridgestone 55/80 R63, Dimensions: 48'5" Length, 29'1" Width, 21'9" Height"



See other truck photos: Belaz, Caterpillar, Hitachi/Euclid, Komatsu, Liebherr, Terex/Unit Rig, Trolley Assist
